Generac QuietPack 55G
Watts Delivered since 05/10/07
|
|
| The Generac QuietPack is a low speed timing
belt-driven 5.5kw generator designed for RV service. It features
single-side service, single location connections, remote-controllable and is
one of the quietest generators I've ever tested. It uses the Briggs &
Stratton Vanguard industrial V-twin 27 hp engine. Most of the lack of
noise is achieved by the simple technique of only running the engine at
about 2000 RPM. The two pole alternator is driven at 3600 RPM by means
of a guaranteed-for-life timing belt and pulley system.
I purchased this generator from Advanced RV
supply. These guys have great prices and the price includes free
shipping. For a device that weighs several hundred pounds, free
shipping is a significant discount.
I bought this generator for use with my concession trailer. I
needed a very quiet portable generator capable of supplying power to an
all-electric concession stand. This generator fit the bill perfectly.
I mounted the generator on a garden cart for portability. Great idea
but it didn't work out so well. The cart claimed to be rated for 1000
lbs of load (yeah, right!) The 300 lbs of generator fairly quickly
collapsed the undercarriage. I replaced that stuff with some heavy
duty pneumatic castors (not shown).
After many years of dealing with portable generators, I realized that one of
the biggest operational hassles is fueling. Having to fuel a portable
generator is a major hassle when operating for a day or more at a time.
For safety, the generator should be shut down while refueling. This
disrupts the operation of the concession stand. Plus it involves
employees having to handle flammable gasoline.
Upon further consideration I realized that the outboard motor industry had
long ago figured out how to safely handle gasoline. The portable tank
and the quick coupler makes handling gasoline safe and convenient.
Therefore I have rigged all my generators to use outboard motor fuel tanks.
In summary, I can say without doubt that this is the best and quietest
portable generator I've ever tested. There isn't a whole lot more that
I could ask for in a generator.
Let's take a photo tour. |
|
| Be sure to REFRESH each page on this site as
I'm adding content on a daily basis. |
|
|
| |
|
|

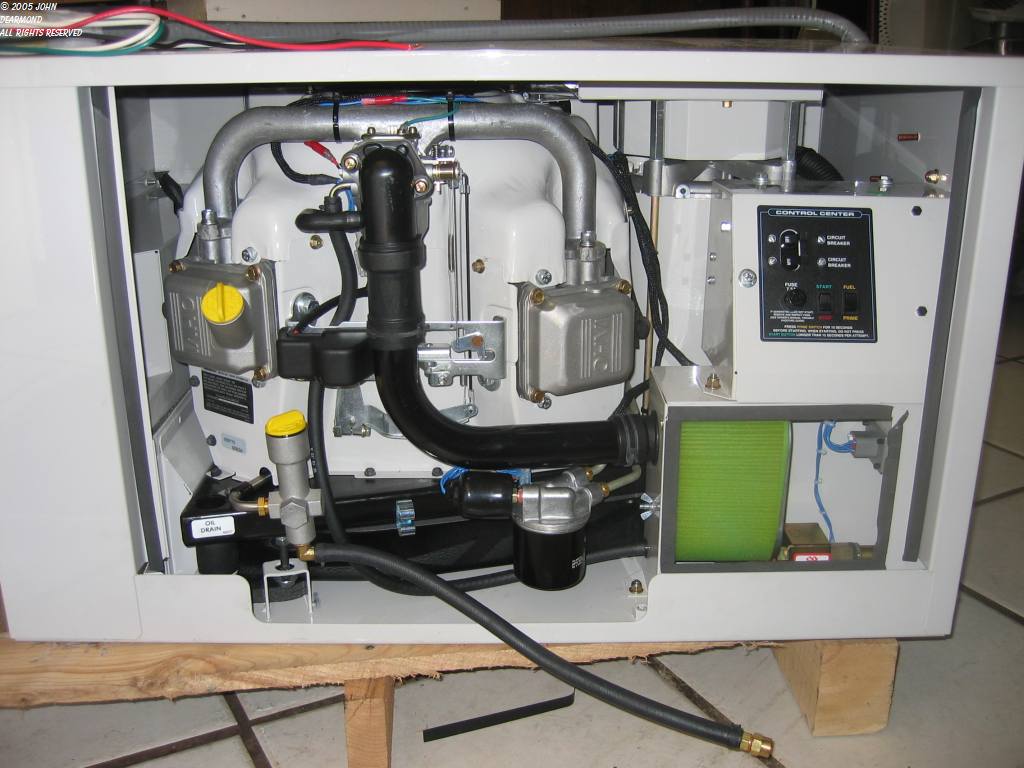

| This photo shows the generator as it arrived. The
service panel is off. The V-twin engine is to the left. Note
that it is completely enclosed in sound damping metal. |
 |
|

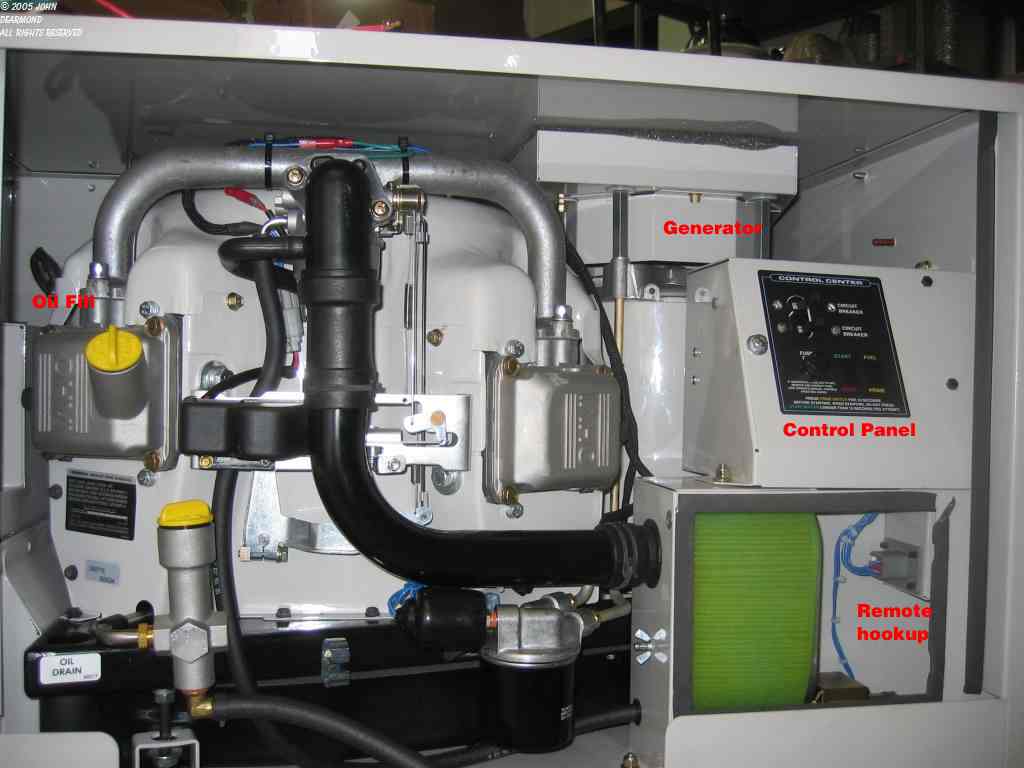

| A closer shot showing several features. The oil change
system is especially nice. After having cursed the drain plug
locations on various generators, I have nothing but praise for this system. |
 |
|

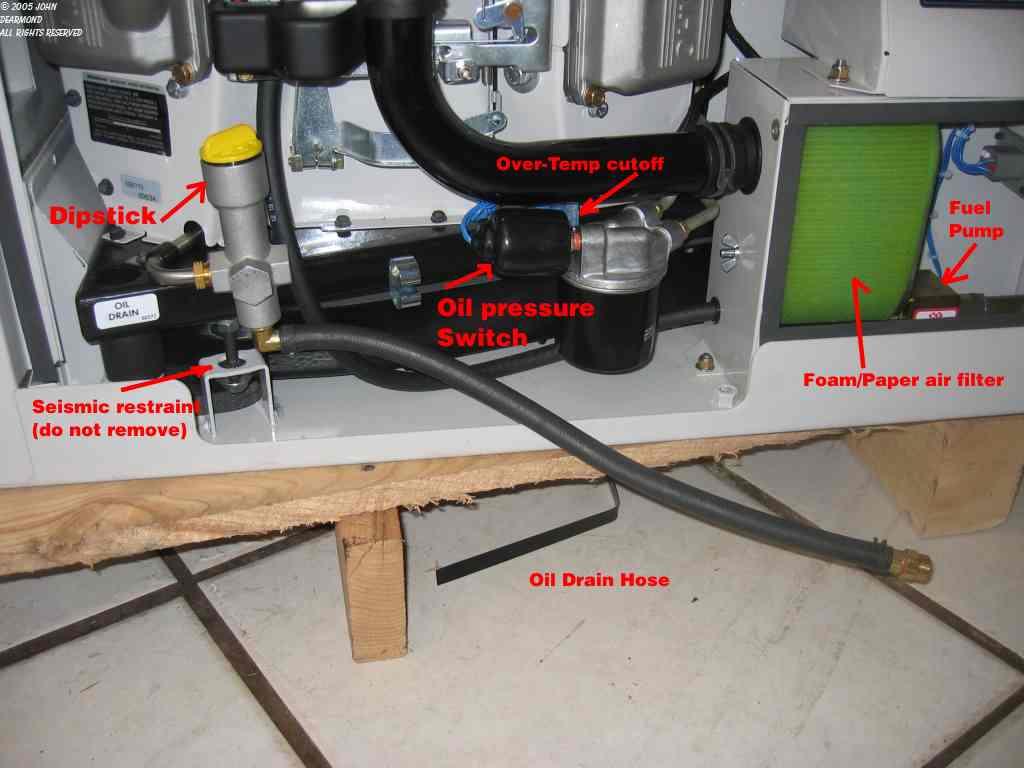

| Another view showing yet more features. As can be seen
here, the oil change hose is simply unclipped, the cap removed and the hose
lowered into a suitable container. |
 |
|
| Here is a closeup of the oil change system. |
 |
|

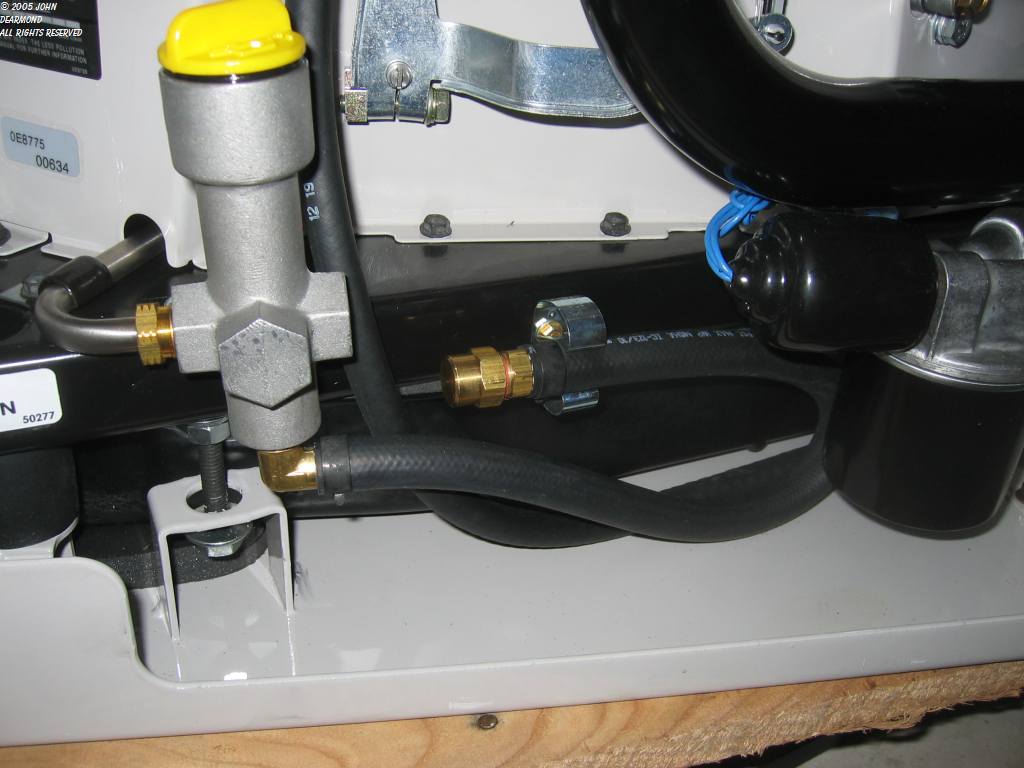

| The dipstick. |
 |
|

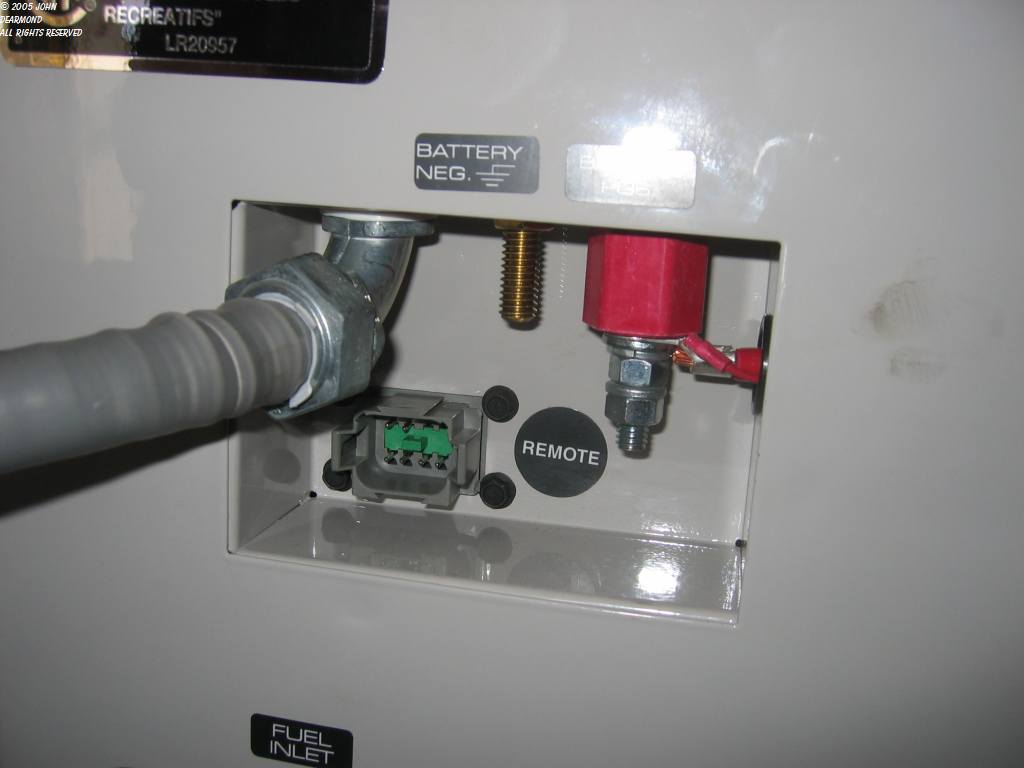

| Here is where all the outside connections are made.
Note the waterproof automotive-type connector for the remote controls.
If you've ever fought to get heavy cables bent around to make the
connections to an Onan, you'll really appreciate this battery connection. |
 |
|
| The control panel. Note the heavy welded studs and
anti-vibration nuts used to hold things together. |
 |
|

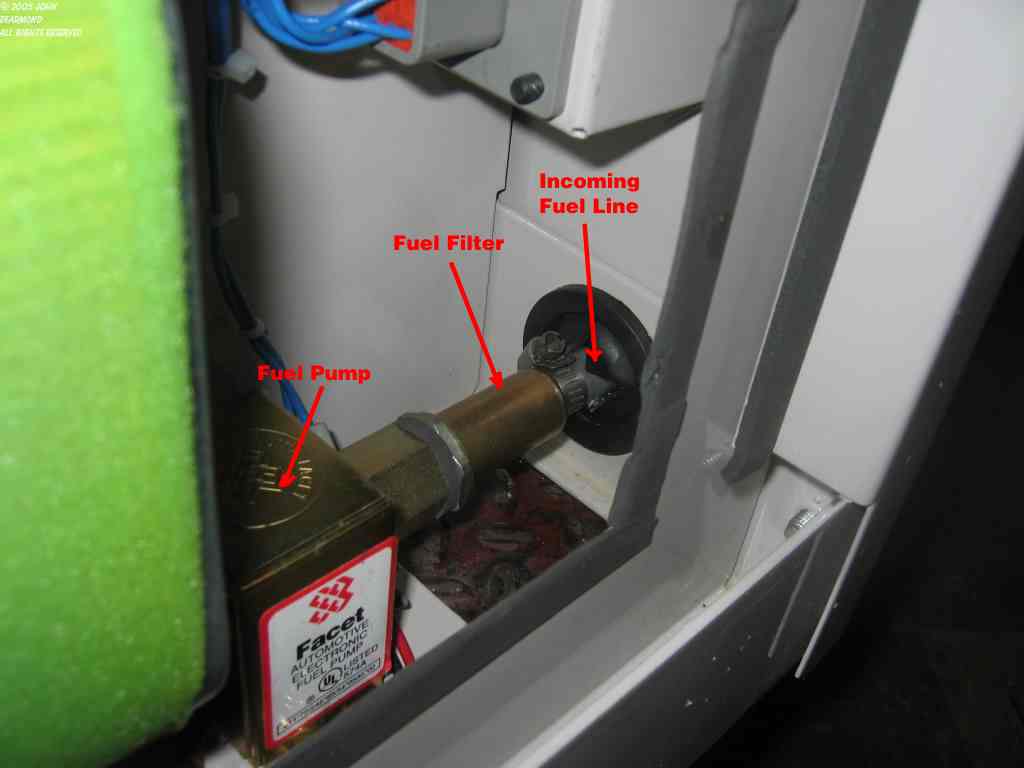

| Here is a view of the fuel system. The fuel hose is
simply pushed through the grommet, slipped over the fuel filter nipple and
the clamp tightened. Note the superb Facet fuel pump. Very quiet
and efficient. |
 |
|
| If you've ever camped in cold weather you've probably
experienced carburetor icing. With older Onans you just lived with it.
Newer ones have a damper that directs warm air to the carb. Of course,
you have to go outside to flip the lever. |
 |

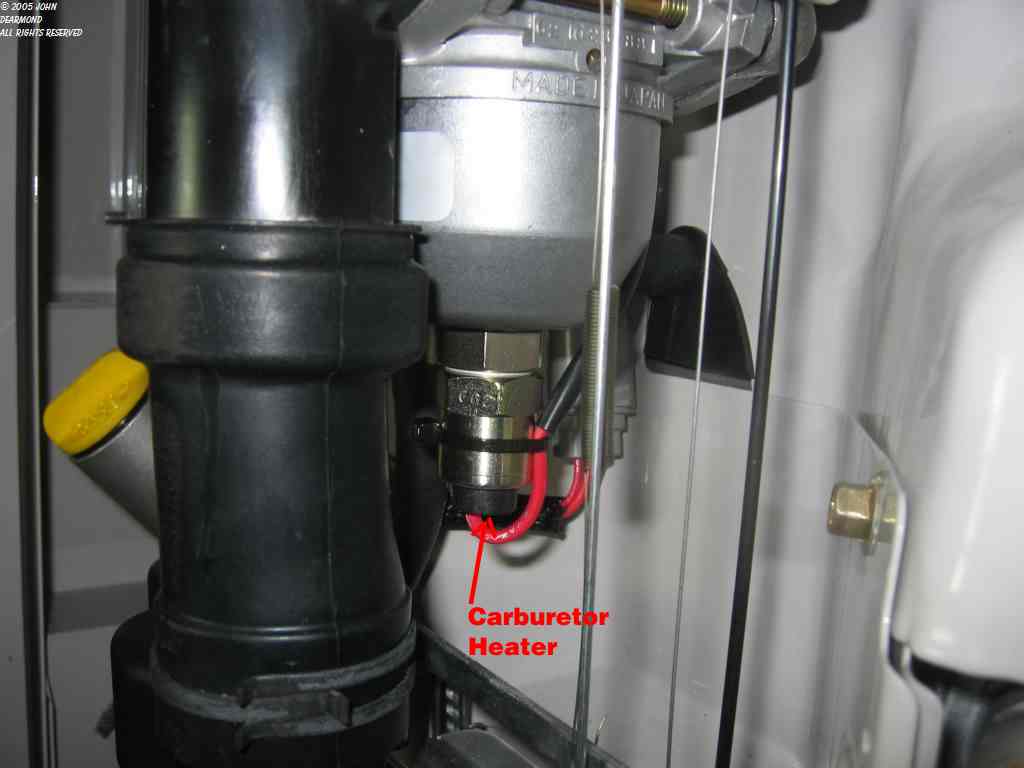

Generac has a better idea. This photo shows the
electric fuel cutoff that also serves as an
electric carburetor heater. It applies heat right where it is needed -
the emulsion tube. This deices the carb without the power hit that
warm air causes. |

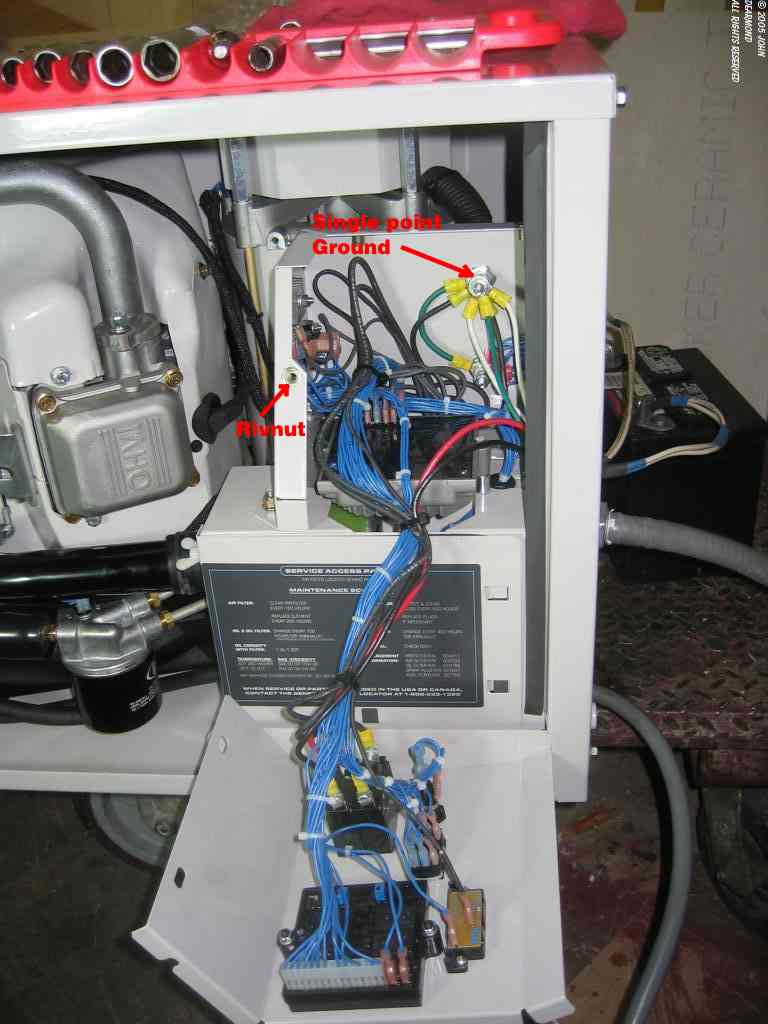

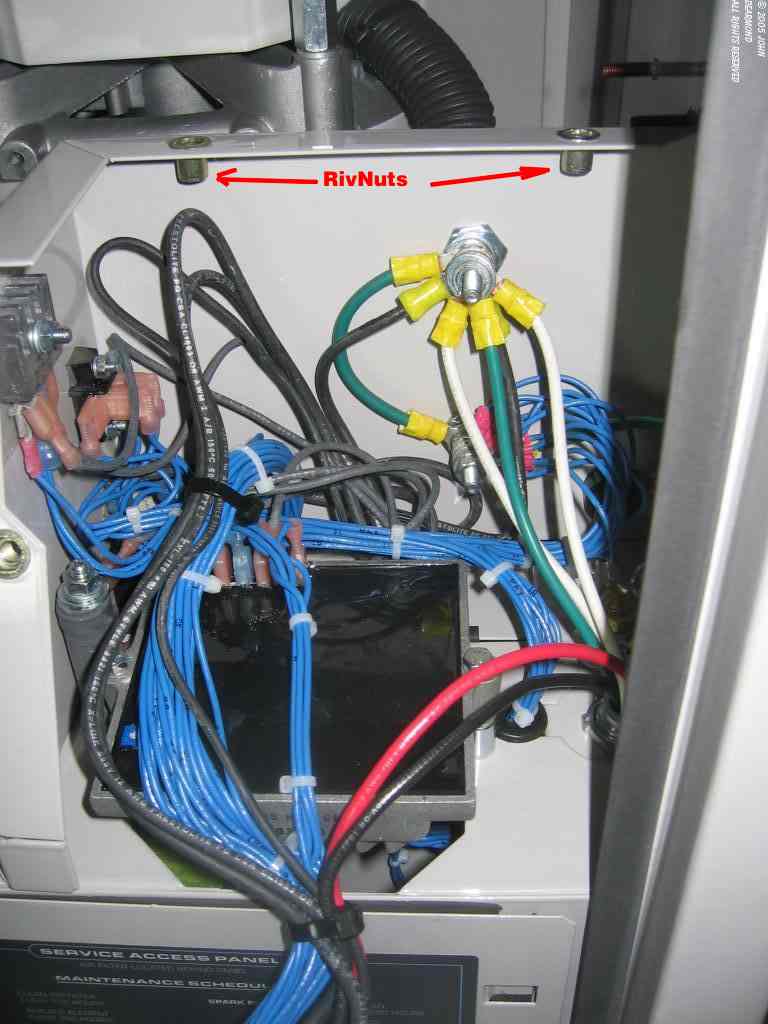

| A view of the inside of the control box. Note the
single point ground system. This greatly reduces conducted electrical
noise. Also note the RivNuts that receive the fasteners. This
device contains real threads. Much better than a punched hole and
sheet metal screws like most manufacturers use. |
 |
|
| A closer view of the control box. Note the quality
high temperature wiring. |
 |
|

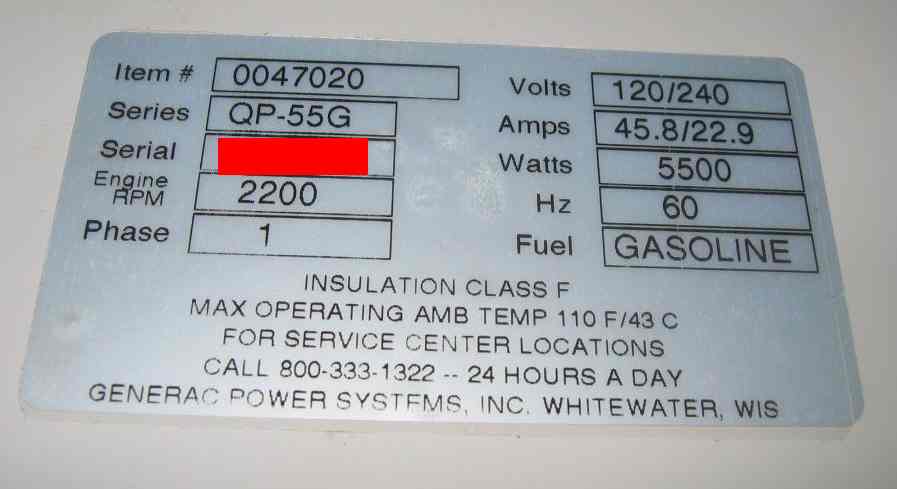

| The nameplate |
 |
|

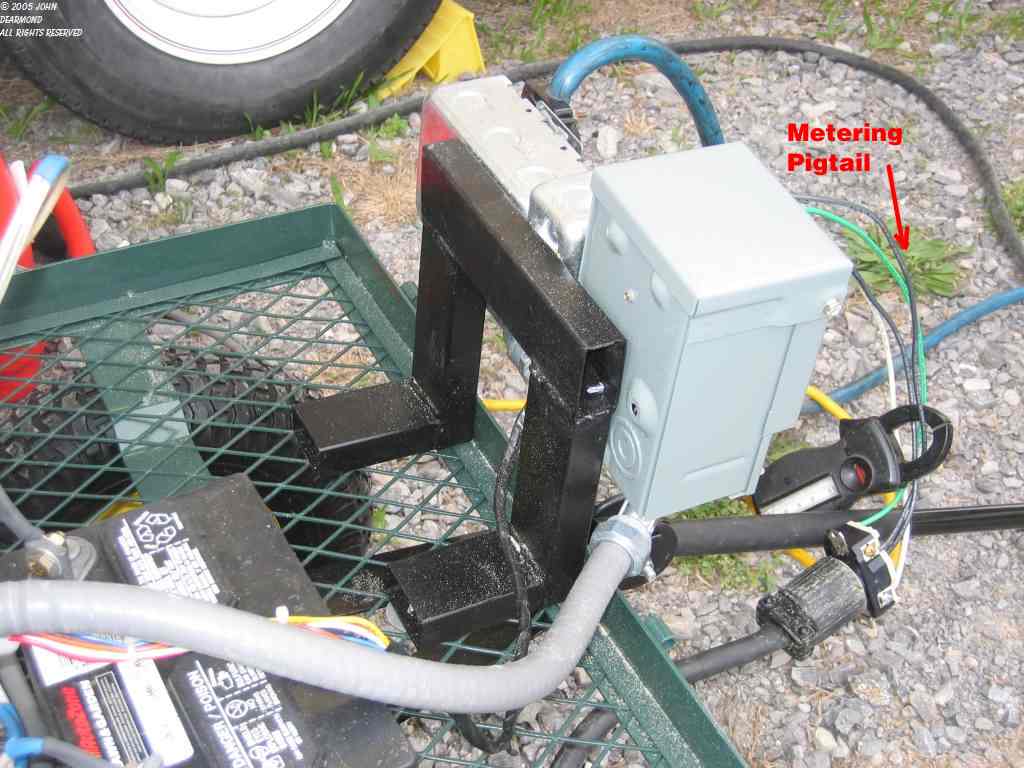

| The generator cart is pictured above left. This is a
shot of the electrical connections. I bypassed the internal breakers
and installed an external breaker so that I don't have to remove the service
panel to reset the breakers. |
 |
|

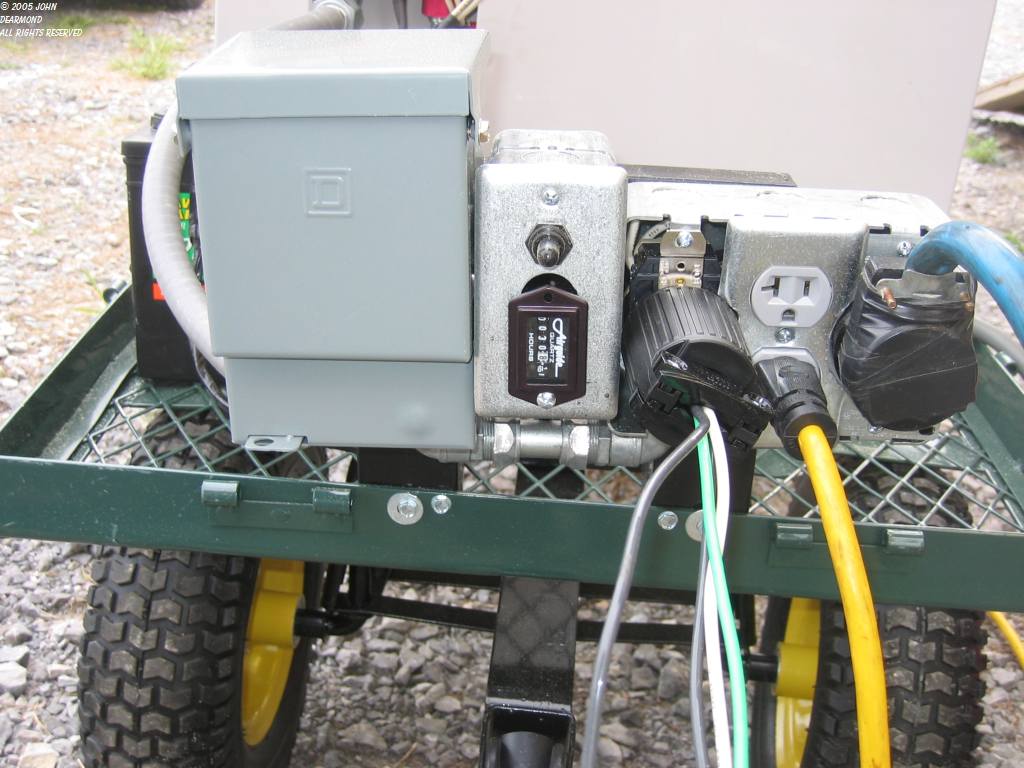

| Another view of the connector panel. The QuietPack
comes connected for 120 volt output but can be re-strapped for 240. I
have mine strapped that way. The panel features an RV 30 amp outlet, a
240 volt twist-lock and a convenience outlet. |
 |
|
| This shows the generator deployed at a concession event.
It is powering the concession stand, a commercial refrigerator and my RV.
It is quiet enough to be located right next to the stand. Note the
outboard motor gas tank. This tank can be changed out for another
without shutting down the generator. |
 |
|
| |
|
|
| |
|
|
